IDA 判断 Thumb 指令集和 Arm 指令集
IDA - Options - General - number of opcode bytes - 设置为 4此时查看 IDA VIew 中 opcode 的长度, 如果出现 2 个字节和 4 个字节的, 说明为 thumb 指令集
如果都是 4 个字节的, 说明是 arm 指令集;
在 Thumb 指令集下, inline hook 的偏移地址需要进行 +1 操作;

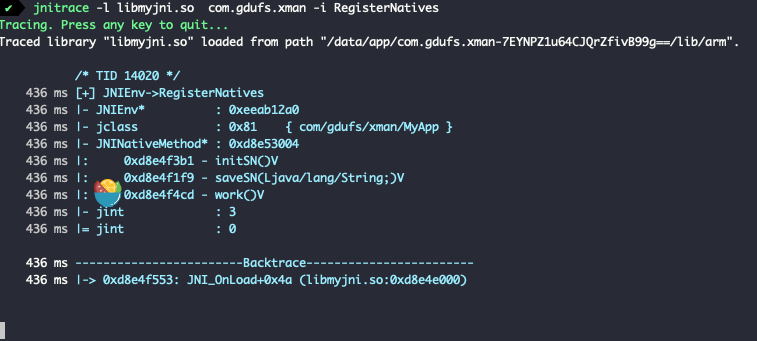

获取所有 JNI 函数函数地址
通过 hook ArtMethod 的 RegisterNative 函数, 可以监控所有的静态注册和动态注册的 JNI 函数的地址;
frida14
仅在Android 8.1下测试成功，其他版本可能需要重新修改适配
原作者: Simp1er
const STD_STRING_SIZE = 3 * Process.pointerSize;
class StdString {
constructor() {
this.handle = Memory.alloc(STD_STRING_SIZE);
}
dispose() {
const [data, isTiny] = this._getData();
if (!isTiny) {
Java.api.$delete(data);
}
}
disposeToString() {
const result = this.toString();
this.dispose();
return result;
}
toString() {
const [data] = this._getData();
return data.readUtf8String();
}
_getData() {
const str = this.handle;
const isTiny = (str.readU8() & 1) === 0;
const data = isTiny ? str.add(1) : str.add(2 * Process.pointerSize).readPointer();
return [data, isTiny];
}
}
function prettyMethod(method_id, withSignature) {
const result = new StdString();
Java.api['art::ArtMethod::PrettyMethod'](result, method_id, withSignature ? 1 : 0);
return result.disposeToString();
}
function readStdString(str) {
if ((str.readU8() & 1) === 1) { // size LSB (=1) indicates if it's a long string
return str.add(2 * Process.pointerSize).readPointer().readUtf8String();
}
return str.add(1).readUtf8String();
}
function attach(addr) {
Interceptor.attach(addr, {
onEnter: function (args) {
this.arg0 = args[0]; // this
},
onLeave: function (retval) {
var modulemap = new ModuleMap()
modulemap.update()
var module = modulemap.find(retval)
// var string = Memory.alloc(0x100)
// ArtMethod_PrettyMethod(string, this.arg0, 1)
if (module != null) {
console.log('<' + module.name + '> method_name =>',
prettyMethod(this.arg0, 1),
',offset=>', ptr(retval).sub(module.base), ',module_name=>', module.name)
} else {
console.log('<anonymous> method_name =>', readStdString(string), ', addr =>', ptr(retval))
}
}
});
}
function hook_RegisterNative() {
var libart = Process.findModuleByName('libart.so')
var symbols = libart.enumerateSymbols()
for (var i = 0; i < symbols.length; i++) {
if (symbols[i].name.indexOf('RegisterNative') > -1 && symbols[i].name.indexOf('ArtMethod') > -1 && symbols[i].name.indexOf('RuntimeCallbacks') < 0) {
//art::RuntimeCallbacks::RegisterNativeMethod(art::ArtMethod*, void const*, void**)
attach(symbols[i].address)
}
}
}
function main() {
hook_RegisterNative()
}
setImmediate(main)枚举内存中的 so 文件
用于查看目标 module 是否被正常加载, 使用 Process.enumerateModules() 将当前加载的所有 so 文件打印出来
function hook_native(){
var modules = Process.enumerateModules();
for (var i in modules){
var module = modules[i];
console.log(module.name);
if (module.name.indexOf("target.so") > -1 ){
console.log(module.base);
}
}
}获取指定 so 文件的基地址
function hook_module() {
var baseAddr = Module.findBaseAddress("libnative-lib.so");
console.log("baseAddr", baseAddr);
}获取指定 so 文件的函数
通过导出函数名定位 native 方法
function hook_func_from_exports(){
var add_c_addr = Module.findExportByName("libnative-lib.so", "add_c");
console.log("add_c_addr is :",add_c_addr);
}通过 symbols 符号定位 native 方法
function find_func_from_symbols() {
var NewStringUTF_addr = null;
var symbols = Process.findModuleByName("libart.so").enumerateSymbols();
for (var i in symbols) {
var symbol = symbols[i];
if (symbol.name.indexOf("art") >= 0 &&
symbol.name.indexOf("JNI") >= 0 &&
symbol.name.indexOf("CheckJNI") < 0
){
if (symbol.name.indexOf("NewStringUTF") >= 0) {
console.log("find target symbols", symbol.name, "address is ", symbol.address);
NewStringUTF_addr = symbol.address;
}
}
}
console.log("NewStringUTF_addr is ", NewStringUTF_addr);
Interceptor.attach(NewStringUTF_addr, {
onEnter: function (args) {
console.log("args0",args[0])
console.log("args0", args[0], hexdump(args[0]));
console.log("args1", args[1], hexdump(args[1]));
var env = Java.vm.tryGetEnv();
if (env != null) {
// 直接读取 c 里面的 char
console.log("Memory readCstring is :", Memory.readCString(args[1]));
}else{
console.log("get env error");
}
},
onLeave: function (returnResult) {
console.log("result: ", Java.cast(returnResult, Java.use("java.lang.String")));
var env = Java.vm.tryGetEnv();
if (env != null) {
var jstring = env.newStringUtf("修改返回值");
returnResult.replace(ptr(jstring));
}
}
})
}通过地址偏移 inline-hook 任意函数
function main(){
// get base address of target so;
var libnative_lib_addr = Module.findBaseAddress("libnative-lib.so");
console.log("base module addr ->", libnative_lib_addr);
if (libnative_lib_addr){
var add_addr1 = Module.findExportByName("libnative-lib.so", "_Z5r0addii");
var add_addr2 = libnative_lib_addr.add(0x94B2 + 1); // 32位需要加1
console.log(add_addr1);
console.log(add_addr2);
}
// 主动调用
var add1 = new NativeFunction(add_addr1, "int", ["int", "int"]);
var add2 = new NativeFunction(add_addr2, "int", ["int", "int"]);
console.log("add1 result is ->" + add1(10, 20));
console.log("add2 result is ->" + add2(10, 20));
}
setImmediate(main);
/*
base module addr -> 0xd430b000
0xd43144b3
0xd43144b3
add1 result is ->30
add2 result is ->30
*/通过 Intercept 拦截器打印 native 方法参数和返回值, 并修改返回值
onEnter: 函数(args) : 回调函数, 给定一个参数 args, 用于读取或者写入参数作为 NativePointer 对象的指针;
onLeave: 函数(retval) : 回调函数给定一个参数 retval, 该参数是包含原始返回值的 NativePointer 派生对象; 可以调用 retval.replace(1234) 以整数 1234 替换返回值, 或者调用retval.replace(ptr("0x1234")) 以替换为指针;
注意: retval 对象会在 onLeave 调用中回收, 因此不要将其存储在回调之外使用, 如果需要存储包含的值, 需要制作深拷贝, 如 ptr(retval.toString())
function find_func_from_exports() {
var add_c_addr = Module.findExportByName("libnative-lib.so", "add_c");
console.log("add_c_addr is :",add_c_addr);
// 添加拦截器
Interceptor.attach(add_c_addr,{
// 打印入参
onEnter: function (args) {
console.log("add_c called");
console.log("arg1:",args[0].toInt32());
console.log("arg2", args[1].toInt32());
},
// 打印返回值
onLeave: function (returnValue) {
console.log("add_c result is :", returnValue.toInt32());
// 修改返回值
returnValue.replace(100);
}
})
}通过 Intercept 拦截器替换原方法
function frida_Interceptor() {
Java.perform(function () {
//这个c_getSum方法有两个int参数、返回结果为两个参数相加
//这里用NativeFunction函数自己定义了一个c_getSum函数
var add_method = new NativeFunction(Module.findExportByName('libhello.so', 'c_getSum'),
'int',['int','int']);
//输出结果 那结果肯定就是 3
console.log("result:",add_method(1,2));
//这里对原函数的功能进行替换实现
Interceptor.replace(add_method, new NativeCallback(function (a, b) {
//h不论是什么参数都返回123
return 123;
}, 'int', ['int', 'int']));
//再次调用 则返回123
console.log("result:",add_method(1,2));
});
}inline hook
通俗点说, inline hook就是通过内存地址, 进行 hook;
function inline_hook() {
var libnative_lib_addr = Module.findBaseAddress("libnative-lib.so");
if (libnative_lib_addr) {
console.log("libnative_lib_addr:", libnative_lib_addr);
var addr_101F4 = libnative_lib_addr.add(0x102BC);
console.log("addr_101F4:", addr_101F4);
Java.perform(function () {
Interceptor.attach(addr_101F4, {
onEnter: function (args) {
console.log("addr_101F4 OnEnter :", this.context.PC,
this.context.x1, this.context.x5,
this.context.x10);
},
onLeave: function (retval) {
console.log("retval is :", retval)
}
}
)
})
}
}so 层方法注册到 js 中, 主动调用
new NativeFunction(address, returnType, argTypes[, options])address : 函数地址
returnType : 指定返回类型
argTypes : 数组指定参数类型
类型可选: void, pointer, int, uint, long, ulong, char, uchar, float, double, int8, uint8, int16, int32, uint32, int64, uint64; 参照函数所需的 type 来定义即可;
function invoke_native_func() {
var baseAddr = Module.findBaseAddress("libnative-lib.so");
console.log("baseAddr", baseAddr);
var offset = 0x0000A28C + 1;
var add_c_addr = baseAddr.add(offset);
var add_c_func = new NativeFunction(add_c_addr, "int", ["int","int"]);
var result = add_c_func(1, 2);
console.log(result);
}
Java.perform(function () {
// 获取 so 文件基地址
var base = Module.findBaseAddress("libnative-lib.so");
// 获取目标函数偏移
var sub_834_addr = base.add(0x835) // thumb 需要 +1
// 使用 new NativeFunction 将函数注册到 js
var sub_834 = new NativeFunction(sub_834_addr, 'pointer', ['pointer']);
// 开辟内存, 创建入参
var arg0 = Memory.alloc(10);
ptr(arg0).writeUtf8String("123");
var result = sub_834(arg0);
console.log("result is :", hexdump(result));
})hook libart 中的 jni 方法
jni 全部定在在 /system/lib(64)/libart.so 文件中, 通过枚举 symbols 筛选出指定的方法
function hook_libart() {
var GetStringUTFChars_addr = null;
// jni 系统函数都在 libart.so 中
var module_libart = Process.findModuleByName("libart.so");
var symbols = module_libart.enumerateSymbols();
for (var i = 0; i < symbols.length; i++) {
var name = symbols[i].name;
if ((name.indexOf("JNI") >= 0)
&& (name.indexOf("CheckJNI") == -1)
&& (name.indexOf("art") >= 0)) {
if (name.indexOf("GetStringUTFChars") >= 0) {
console.log(name);
// 获取到指定 jni 方法地址
GetStringUTFChars_addr = symbols[i].address;
}
}
}
Java.perform(function(){
Interceptor.attach(GetStringUTFChars_addr, {
onEnter: function(args){
// console.log("args[0] is : ", args[0]);
// console.log("args[1] is : ", args[1]);
console.log("native args[1] is :",Java.vm.getEnv().getStringUtfChars(args[1],null).readCString());
console.log('GetStringUTFChars onEnter called from:\n' +
Thread.backtrace(this.context, Backtracer.FUZZY)
.map(DebugSymbol.fromAddress).join('\n') + '\n');
// console.log("native args[1] is :", Java.cast(args[1], Java.use("java.lang.String")));
// console.log("native args[1] is :", Memory.readCString(Java.vm.getEnv().getStringUtfChars(args[1],null)));
}, onLeave: function(retval){
// retval const char*
console.log("GetStringUTFChars onLeave : ", ptr(retval).readCString());
}
})
})
}hook libc 中的系统方法
/system/lib(64)/libc.so 导出的符号没有进行 namemanline , 直接过滤筛选即可
// hook libc.so
var pthread_create_addr = null;
// console.log(JSON.stringify(Process.enumerateModules()));
// Process.enumerateModules() 枚举加载的so文件
var symbols = Process.findModuleByName("libc.so").enumerateSymbols();
for (var i = 0; i < symbols.length; i++){
if (symbols[i].name === "pthread_create"){
// console.log("symbols name is -> " + symbols[i].name);
// console.log("symbols address is -> " + symbols[i].address);
pthread_create_addr = symbols[i].address;
}
}
Interceptor.attach(pthread_create_addr,{
onEnter: function(args){
console.log("args is ->" + args[0], args[1], args[2],args[3]);
},
onLeave: function(retval){
console.log(retval);
}
});libc.so 中方法替换
// hook 检测frida 的方法
function main() {
// var exports = Process.findModuleByName("libnative-lib.so").enumerateExports(); 导出
// var imports = Process.findModuleByName("libnative-lib.so").enumerateImports(); 导入
// var symbols = Process.findModuleByName("libnative-lib.so").enumerateSymbols(); 符号
var pthread_create_addr = null;
var symbols = Process.getModuleByName("libc.so").enumerateSymbols();
for (var i = 0; i < symbols.length; i++) {
var symbol = symbols[i];
if (symbol.name === "pthread_create") {
pthread_create_addr = symbol.address;
console.log("pthread_create name is ->", symbol.name);
console.log("pthread_create address is ->", pthread_create_addr);
}
}
Java.perform(function(){
// 定义方法 之后主动调用的时候使用
var pthread_create = new NativeFunction(pthread_create_addr, 'int', ['pointer', 'pointer','pointer','pointer'])
Interceptor.replace(pthread_create_addr,new NativeCallback(function (a0, a1, a2, a3) {
var result = null;
var detect_frida_loop = Module.findExportByName("libnative-lib.so", "_Z17detect_frida_loopPv");
console.log("a0,a1,a2,a3 ->",a0,a1,a2,a3);
if (String(a2) === String(detect_frida_loop)) {
result = 0;
console.log("阻止frida反调试启动");
} else {
result = pthread_create(a0,a1,a2,a3);
console.log("正常启动");
}
return result;
}, 'int', ['pointer', 'pointer','pointer','pointer']));
})
}hook native 调用栈
Interceptor.attach(f, {
onEnter: function (args) {
console.log('RegisterNatives called from:\n' +
Thread.backtrace(this.context, Backtracer.ACCURATE)
.map(DebugSymbol.fromAddress).join('\n') + '\n');
}
});jnitrace
安装
jnitrace: https://github.com/chame1eon/jnitrace
python` : `pip install jnitrace基础用法
启动命令
jnitrace [options] -l libname packagename例如: jnitrace -l libnative-lib.so com.example.myapplication
必要参数
-l libname : 指定要trace的.so文件, 可以同时trace多个.so文件, 直接使用 来trace所有的.so文件; 如: -l libnative-lib.so -l libanother-lib.so or -l
packagename : 指定要trace的package name
可选参数
-m: 指定是spawn还是attach
-b: 指定是fuzzy还是accurate
-i
-e
-I
-o path/output.json，导出输出到文件里。
-p path/to/script.js，用于在加载jnitrace脚本之前将指定路径的Frida脚本加载到目标进程中，这可以用于在jnitrace启动之前对抗反调试。
-a path/to/script.js，用于在加载jnitrace脚本之后将指定路径的Frida脚本加载到目标进程中
-ignore-env，不打印所有的JNIEnv函数
-ignore-vm，不打印所有的JavaVM函数
启动方式
默认使用 spawn 启动, 可以通过 -m attach 设置通过 attach 启动
jnitrace -m attach -l[libnative-lib.so](http://libnative-lib.so) com.kevin.demoso1设置回溯器
默认情况下使用 accurate的精确模式来进行回溯, 可以通过 -b fuzzy 修改为模糊模式
jnitrace -l [libnative-lib.so](http://libnative-lib.so) -b fuzzy com.kevin.demoso1监控指定规则的方法
用于指定应该跟踪的方法名, 该选项可以多次提供;
jnitrace -l libnative-lib.so -i RegisterNatives com.kevin.demoso1只过滤出RegisterNatives相关的内容
忽略指定规则的方法
用于指定在跟踪中应被忽略的方法名, 这个选项可以被多次提供;
忽略以Find开头的所有方法;
jnitrace -l libnative-lib.so -e ^Find com.kevin.demosojnitace 计算偏移地址
0x8e4f3b1 是方法 initSN 方法的绝对地址
0xd8e4e000 是 libmyjni.so 基地址

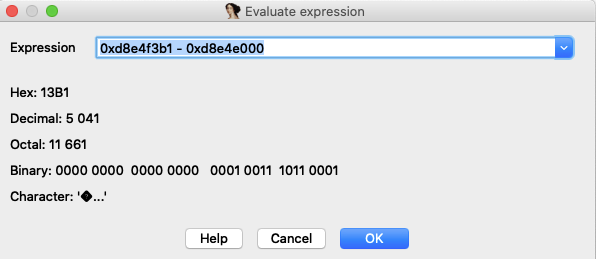

使用使用 initSN()V的绝对地址 0xd8e4f3b1 减去 libmyjni.so 的基地址 0xd8e4e000 , 得到偏移 0x13B1
g 进行跳转到 0x13B1 即可进入方法
frida trace
文档地址: https://frida.re/docs/frida-trace/
options
Usage: frida-trace [options] target
Options:
--version show program's version number and exit
-h, --help show this help message and exit
-D ID, --device=ID connect to device with the given ID
-U, --usb connect to USB device
-R, --remote connect to remote frida-server
-H HOST, --host=HOST connect to remote frida-server on HOST
-f FILE, --file=FILE spawn FILE
-F, --attach-frontmost attach to frontmost application
-n NAME, --attach-name=NAME attach to NAME
-p PID, --attach-pid=PID attach to PID
--stdio=inherit|pipe stdio behavior when spawning (defaults to “inherit”)
--runtime=duk|v8 script runtime to use (defaults to “duk”)
--debug enable the Node.js compatible script debugger
-I MODULE, --include-module=MODULE include MODULE
-X MODULE, --exclude-module=MODULE exclude MODULE
-i FUNCTION, --include=FUNCTION include FUNCTION
-x FUNCTION, --exclude=FUNCTION exclude FUNCTION
-a MODULE!OFFSET, --add=MODULE!OFFSET add MODULE!OFFSET
-T, --include-imports include program's imports
-t MODULE, --include-module-imports=MODULE include MODULE imports
-m OBJC_METHOD, --include-objc-method=OBJC_METHOD include OBJC_METHOD
-M OBJC_METHOD, --exclude-objc-method=OBJC_METHOD exclude OBJC_METHOD
-s DEBUG_SYMBOL, --include-debug-symbol=DEBUG_SYMBOL include DEBUG_SYMBOL
-q, --quiet do not format output messages
-d, --decorate Add module name to generated onEnter log statement
-o OUTPUT, --output=OUTPUT dump messages to file基础使用
frida-trace [options] packagename启动模式
默认使用 attach 模式, 可以指定 -f packageName 使用 spawn 模式启动
frida-trace -U -i strcmp -f com.gdufs.xman文件输出
frida-trace -U -i "strcmp" -f com.gdufs.xman -o xman.json-o filepath 指定输出的文件路径, 方便内容过多时进行查看
trace 任意 function
frida-trace -U -i "strcmp" com.example.demoso1trace 任意 module
frida-trace -U -I "libnative-lib.so" com.example.demoso1根据地址进行 trace
frida-trace -U -a "libnative-lib.so!0x9281" com.example.demoso1批量 trace
源码地址: https://github.com/Pr0214/trace_natives
ps: 需要切换到 frida14 版本
1.将traceNatives.py丢进IDA plugins目录中
在ida 的python console中运行如下命令即可找到plugins目录：os.path.join(idaapi.get_user_idadir(), "plugins")
2.IDA中，Edit-Plugins-traceNatives –> IDA输出窗口就会显示如下字眼：使用方法如下： frida-trace -UF -O C:\Users\Lenovo\Desktop\2021\mt\libmtguard.txt
frida-hook-libart
下载地址: https://github.com/lasting-yang/frida_hook_libart
hook art
frida -U --no-pause -f package_name -l hook_art.jshook_RegisterNatives
frida -U --no-pause -f package_name -l hook_RegisterNatives.jshook_artmethod
init libext first time
adb push lib/libext64.so /data/local/tmp/libext64.so
adb push lib/libext.so /data/local/tmp/libext.so
adb shell su -c "cp /data/local/tmp/libext64.so /data/app/libext64.so"
adb shell su -c "cp /data/local/tmp/libext.so /data/app/libext.so"
adb shell su -c "chown 1000.1000 /data/app/libext*.so"
adb shell su -c "chmod 777 /data/app/libext*.so"
adb shell su -c "ls -al /data/app/libext*"use hook_artmethod.js
frida -U --no-pause -f package_name -l hook_artmethod.js
# or
frida -U --no-pause -f package_name -l hook_artmethod.js > hook_artmethod.logfrida-fart-hook
首先拷贝fart.so和fart64.so到/data/app目录下，并使用chmod 777 设置好权限,然后就可以使用了。
如果目标 app 没有 sdcard 权限则需要手动添加; 或者可以修改 frida_fart_hook.js 中的源码, 将 savepath 改为 /data/data/应用包名/;
该frida版fart是使用hook的方式实现的函数粒度的脱壳，仅仅是对类中的所有函数进行了加载，但依然可以解决绝大多数的抽取保护
需要以spawn方式启动app，等待app进入Activity界面后，执行fart()函数即可。如app包名为com.example.test,则
frida -U -f com.example.test -l frida_fart_hook.js --no-pause ，然后等待app进入主界面,执行fart()
高级用法：如果发现某个类中的函数的CodeItem没有dump下来，可以调用dump(classname),传入要处理的类名，完成对该类下的所有函数体的dump,dump下来的函数体会追加到bin文件当中。
frida 文件写入(frida/hook libc)
frida api 写入文件
function writeFile(){
var file = new File("/sdcard/reg.dat", "w");
file.write("content from frida");
file.flush();
file.close();
}frida 定义 NativeFunction 写入文件
function writeFileNative(){
var addr_fopen = Module.findExportByName("libc.so", "fopen");
var addr_fputs = Module.findExportByName("libc.so", "fputs");
var addr_fclose = Module.findExportByName("libc.so", "fclose");
// 将 libc 的系统方法注册到 js 层
var fopen = new NativeFunction(addr_fopen, "pointer", ["pointer", "pointer"]);
var fputs = new NativeFunction(addr_fputs, "int", ["pointer", "pointer"]);
var fclose = new NativeFunction(addr_fclose, "int", ["pointer"]);
// 在 js 层主动调用 libc 的方法
// 不能直接将 js 的字符串传给 libc中的方法, 需要进行转换
var filename = Memory.allocUtf8String("/sdcard/reg.dat");
var open_mode = Memory.allocUtf8String("w");
var file = fopen(filename, open_mode);
var buffer = Memory.allocUtf8String("content from frida");
var result = fputs(buffer, file);
console.log("fputs ret: ", result);
// 关闭文件
fclose(file);
}hook 读写 std::string
function readStdString(str){
var isTiny = (str.readU8 & 1) === 0;
if (isTiny){
return str.add(1).readUtf8String();
}
return str.add(2 * Process.pointerSize).readPointer().readUtf8String();
}
function writeStdString(str, content){
var isTiny = (str.readU8() & 1) === 0;
if (isTiny){
str.add(1).writeUtf8String(content);
}else{
str.add(2 * Process.pointerSize).readPointer().writeUtf8String(content);
}
}hook so 文件加载后马上 hook
//第一种方式（针对较老的系统版本）<=android6
var dlopen = Module.findExportByName(null, "dlopen");
console.log(dlopen);
if(dlopen != null){
Interceptor.attach(dlopen,{
onEnter: function(args){
var soName = args[0].readCString();
console.log(soName);
if(soName.indexOf("libc.so") != -1){
this.hook = true;
}
},
onLeave: function(retval){
if(this.hook) {
dlopentodo();
};
}
});
}
//第二种方式（针对新系统版本） android 8.1 使用该方法
var android_dlopen_ext = Module.findExportByName(null, "android_dlopen_ext");
console.log(android_dlopen_ext);
if(android_dlopen_ext != null){
Interceptor.attach(android_dlopen_ext,{
onEnter: function(args){
var soName = args[0].readCString();
console.log(soName);
if(soName.indexOf("libc.so") != -1){
this.hook = true;
}
},
onLeave: function(retval){
if(this.hook) {
dlopentodo();
};
}
});
}
function dlopentodo(){
//todo ...
}hook libc kill
function replaceKILL(){
var kill_addr = Module.findExportByName("libc.so","kill");
Interceptor.replace(kill_addr, new NativeCallback(function(arg0, arg1){
console.log("arg0=> ", arg0);
console.log("arg1=> ", arg1);
console.log('libc.so!kill called from:\n' +
Thread.backtrace(this.context, Backtracer.ACCURATE)
.map(DebugSymbol.fromAddress).join('\n') + '\n');
},"int",["int","int"]))
}hook init_array
//应用以32位在64位终端环境下运行
//adb install --abi armeabi-v7a <path to apk>
function get_call_function() {
var call_function_addr = null;
var symbols = Process.getModuleByName("linker").enumerateSymbols();
for (var m = 0; m < symbols.length; m++) {
if (symbols[m].name == "__dl__ZL13call_functionPKcPFviPPcS2_ES0_") {
call_function_addr = symbols[m].address;
console.log("found call_function_addr => ", call_function_addr)
hook_call_function(call_function_addr)
}
}
}
function hook_call_function(_call_function_addr){
console.log("hook call function begin!hooking address :=>",_call_function_addr)
Interceptor.attach(_call_function_addr,{
onEnter:function(args){
if(args[2].readCString().indexOf("base.odex")<0){
console.log("============================")
console.log("function_name =>",args[0].readCString())
var soPath = args[2].readCString()
console.log("so path : =>",soPath)
var soName = soPath.split("/").pop();
console.log("function offset =>","0x"+(args[1]-Module.findBaseAddress(soName)).toString(16))
console.log("============================")
}
},onLeave:function(retval){
}
})
}
setImmediate(get_call_function)
function hook_constructor() {
if (Process.pointerSize == 4) {
var linker = Process.findModuleByName("linker");
} else {
var linker = Process.findModuleByName("linker64");
}
var addr_call_function =null;
var addr_g_ld_debug_verbosity = null;
var addr_async_safe_format_log = null;
if (linker) {
var symbols = linker.enumerateSymbols();
for (var i = 0; i < symbols.length; i++) {
var name = symbols[i].name;
if (name.indexOf("call_function") >= 0){
addr_call_function = symbols[i].address;
}
else if(name.indexOf("g_ld_debug_verbosity") >=0){
addr_g_ld_debug_verbosity = symbols[i].address;
ptr(addr_g_ld_debug_verbosity).writeInt(2);
} else if(name.indexOf("async_safe_format_log") >=0 && name.indexOf('va_list') < 0){
addr_async_safe_format_log = symbols[i].address;
}
}
}
if(addr_async_safe_format_log){
Interceptor.attach(addr_async_safe_format_log,{
onEnter: function(args){
this.log_level = args[0];
this.tag = ptr(args[1]).readCString()
this.fmt = ptr(args[2]).readCString()
if(this.fmt.indexOf("c-tor") >= 0 && this.fmt.indexOf('Done') < 0){
this.function_type = ptr(args[3]).readCString(), // func_type
this.so_path = ptr(args[5]).readCString();
var strs = new Array(); //定义一数组
strs = this.so_path.split("/"); //字符分割
this.so_name = strs.pop();
this.func_offset = ptr(args[4]).sub(Module.findBaseAddress(this.so_name))
console.log("func_type:", this.function_type,
'\nso_name:',this.so_name,
'\nso_path:',this.so_path,
'\nfunc_offset:',this.func_offset
);
}
},
onLeave: function(retval){
}
})
}
}
function main() {
hook_constructor();
}
setImmediate(main);frida dump
document: https://github.com/lasting-yang/frida_dump
frida dump so
function dump_so(so_name) {
Java.perform(function () {
var currentApplication = Java.use("android.app.ActivityThread").currentApplication();
var dir = currentApplication.getApplicationContext().getFilesDir().getPath();
var libso = Process.getModuleByName(so_name);
console.log("[name]:", libso.name);
console.log("[base]:", libso.base);
console.log("[size]:", ptr(libso.size));
console.log("[path]:", libso.path);
var file_path = dir + "/" + libso.name + "_" + libso.base + "_" + ptr(libso.size) + ".so";
var file_handle = new File(file_path, "wb");
if (file_handle && file_handle != null) {
Memory.protect(ptr(libso.base), libso.size, 'rwx');
var libso_buffer = ptr(libso.base).readByteArray(libso.size);
file_handle.write(libso_buffer);
file_handle.flush();
file_handle.close();
console.log("[dump]:", file_path);
}
});
}frida dump dex
function get_self_process_name() {
var openPtr = Module.getExportByName('libc.so', 'open');
var open = new NativeFunction(openPtr, 'int', ['pointer', 'int']);
var readPtr = Module.getExportByName("libc.so", "read");
var read = new NativeFunction(readPtr, "int", ["int", "pointer", "int"]);
var closePtr = Module.getExportByName('libc.so', 'close');
var close = new NativeFunction(closePtr, 'int', ['int']);
var path = Memory.allocUtf8String("/proc/self/cmdline");
var fd = open(path, 0);
if (fd != -1) {
var buffer = Memory.alloc(0x1000);
var result = read(fd, buffer, 0x1000);
close(fd);
result = ptr(buffer).readCString();
return result;
}
return "-1";
}
function mkdir(path) {
var mkdirPtr = Module.getExportByName('libc.so', 'mkdir');
var mkdir = new NativeFunction(mkdirPtr, 'int', ['pointer', 'int']);
var opendirPtr = Module.getExportByName('libc.so', 'opendir');
var opendir = new NativeFunction(opendirPtr, 'pointer', ['pointer']);
var closedirPtr = Module.getExportByName('libc.so', 'closedir');
var closedir = new NativeFunction(closedirPtr, 'int', ['pointer']);
var cPath = Memory.allocUtf8String(path);
var dir = opendir(cPath);
if (dir != 0) {
closedir(dir);
return 0;
}
mkdir(cPath, 755);
chmod(path);
}
function chmod(path) {
var chmodPtr = Module.getExportByName('libc.so', 'chmod');
var chmod = new NativeFunction(chmodPtr, 'int', ['pointer', 'int']);
var cPath = Memory.allocUtf8String(path);
chmod(cPath, 755);
}
function dump_dex() {
var libart = Process.findModuleByName("libart.so");
var addr_DefineClass = null;
var symbols = libart.enumerateSymbols();
for (var index = 0; index < symbols.length; index++) {
var symbol = symbols[index];
var symbol_name = symbol.name;
//这个DefineClass的函数签名是Android9的
//_ZN3art11ClassLinker11DefineClassEPNS_6ThreadEPKcmNS_6HandleINS_6mirror11ClassLoaderEEERKNS_7DexFileERKNS9_8ClassDefE
if (symbol_name.indexOf("ClassLinker") >= 0 &&
symbol_name.indexOf("DefineClass") >= 0 &&
symbol_name.indexOf("Thread") >= 0 &&
symbol_name.indexOf("DexFile") >= 0) {
console.log(symbol_name, symbol.address);
addr_DefineClass = symbol.address;
}
}
var dex_maps = {};
var dex_count = 1;
console.log("[DefineClass:]", addr_DefineClass);
if (addr_DefineClass) {
Interceptor.attach(addr_DefineClass, {
onEnter: function(args) {
var dex_file = args[5];
//ptr(dex_file).add(Process.pointerSize) is "const uint8_t* const begin_;"
//ptr(dex_file).add(Process.pointerSize + Process.pointerSize) is "const size_t size_;"
var base = ptr(dex_file).add(Process.pointerSize).readPointer();
var size = ptr(dex_file).add(Process.pointerSize + Process.pointerSize).readUInt();
if (dex_maps[base] == undefined) {
dex_maps[base] = size;
var magic = ptr(base).readCString();
if (magic.indexOf("dex") == 0) {
var process_name = get_self_process_name();
if (process_name != "-1") {
var dex_dir_path = "/data/data/" + process_name + "/files/dump_dex_" + process_name;
mkdir(dex_dir_path);
var dex_path = dex_dir_path + "/class" + (dex_count == 1 ? "" : dex_count) + ".dex";
console.log("[find dex]:", dex_path);
var fd = new File(dex_path, "wb");
if (fd && fd != null) {
dex_count++;
var dex_buffer = ptr(base).readByteArray(size);
fd.write(dex_buffer);
fd.flush();
fd.close();
console.log("[dump dex]:", dex_path);
}
}
}
}
},
onLeave: function(retval) {}
});
}
}
var is_hook_libart = false;
function hook_dlopen() {
Interceptor.attach(Module.findExportByName(null, "dlopen"), {
onEnter: function(args) {
var pathptr = args[0];
if (pathptr !== undefined && pathptr != null) {
var path = ptr(pathptr).readCString();
//console.log("dlopen:", path);
if (path.indexOf("libart.so") >= 0) {
this.can_hook_libart = true;
console.log("[dlopen:]", path);
}
}
},
onLeave: function(retval) {
if (this.can_hook_libart && !is_hook_libart) {
dump_dex();
is_hook_libart = true;
}
}
})
Interceptor.attach(Module.findExportByName(null, "android_dlopen_ext"), {
onEnter: function(args) {
var pathptr = args[0];
if (pathptr !== undefined && pathptr != null) {
var path = ptr(pathptr).readCString();
//console.log("android_dlopen_ext:", path);
if (path.indexOf("libart.so") >= 0) {
this.can_hook_libart = true;
console.log("[android_dlopen_ext:]", path);
}
}
},
onLeave: function(retval) {
if (this.can_hook_libart && !is_hook_libart) {
dump_dex();
is_hook_libart = true;
}
}
});
}
setImmediate(dump_dex);frida dump dex class
function get_self_process_name() {
var openPtr = Module.getExportByName('libc.so', 'open');
var open = new NativeFunction(openPtr, 'int', ['pointer', 'int']);
var readPtr = Module.getExportByName("libc.so", "read");
var read = new NativeFunction(readPtr, "int", ["int", "pointer", "int"]);
var closePtr = Module.getExportByName('libc.so', 'close');
var close = new NativeFunction(closePtr, 'int', ['int']);
var path = Memory.allocUtf8String("/proc/self/cmdline");
var fd = open(path, 0);
if (fd != -1) {
var buffer = Memory.alloc(0x1000);
var result = read(fd, buffer, 0x1000);
close(fd);
result = ptr(buffer).readCString();
return result;
}
return "-1";
}
function load_all_class() {
if (Java.available) {
Java.perform(function () {
var DexFileclass = Java.use("dalvik.system.DexFile");
var BaseDexClassLoaderclass = Java.use("dalvik.system.BaseDexClassLoader");
var DexPathListclass = Java.use("dalvik.system.DexPathList");
Java.enumerateClassLoaders({
onMatch: function (loader) {
try {
var basedexclassloaderobj = Java.cast(loader, BaseDexClassLoaderclass);
var pathList = basedexclassloaderobj.pathList.value;
var pathListobj = Java.cast(pathList, DexPathListclass)
var dexElements = pathListobj.dexElements.value;
for (var index in dexElements) {
var element = dexElements[index];
try {
var dexfile = element.dexFile.value;
var dexfileobj = Java.cast(dexfile, DexFileclass);
console.log("dexFile:", dexfileobj);
const classNames = [];
const enumeratorClassNames = dexfileobj.entries();
while (enumeratorClassNames.hasMoreElements()) {
var className = enumeratorClassNames.nextElement().toString();
classNames.push(className);
try {
loader.loadClass(className);
} catch (error) {
console.log("loadClass error:", error);
}
}
} catch (error) {
console.log("dexfile error:", error);
}
}
} catch (error) {
console.log("loader error:", error);
}
},
onComplete: function () {
}
})
console.log("load_all_class end.");
});
}
}
var dex_maps = {};
function print_dex_maps() {
for (var dex in dex_maps) {
console.log(dex, dex_maps[dex]);
}
}
function dump_dex() {
load_all_class();
for (var base in dex_maps) {
var size = dex_maps[base];
console.log(base);
var magic = ptr(base).readCString();
if (magic.indexOf("dex") == 0) {
var process_name = get_self_process_name();
if (process_name != "-1") {
var dex_path = "/data/data/" + process_name + "/files/" + base.toString(16) + "_" + size.toString(16) + ".dex";
console.log("[find dex]:", dex_path);
var fd = new File(dex_path, "wb");
if (fd && fd != null) {
var dex_buffer = ptr(base).readByteArray(size);
fd.write(dex_buffer);
fd.flush();
fd.close();
console.log("[dump dex]:", dex_path);
}
}
}
}
}
function hook_dex() {
var libart = Process.findModuleByName("libart.so");
var addr_DefineClass = null;
var symbols = libart.enumerateSymbols();
for (var index = 0; index < symbols.length; index++) {
var symbol = symbols[index];
var symbol_name = symbol.name;
//这个DefineClass的函数签名是Android9的
//_ZN3art11ClassLinker11DefineClassEPNS_6ThreadEPKcmNS_6HandleINS_6mirror11ClassLoaderEEERKNS_7DexFileERKNS9_8ClassDefE
if (symbol_name.indexOf("ClassLinker") >= 0 &&
symbol_name.indexOf("DefineClass") >= 0 &&
symbol_name.indexOf("Thread") >= 0 &&
symbol_name.indexOf("DexFile") >= 0) {
console.log(symbol_name, symbol.address);
addr_DefineClass = symbol.address;
}
}
console.log("[DefineClass:]", addr_DefineClass);
if (addr_DefineClass) {
Interceptor.attach(addr_DefineClass, {
onEnter: function (args) {
var dex_file = args[5];
//ptr(dex_file).add(Process.pointerSize) is "const uint8_t* const begin_;"
//ptr(dex_file).add(Process.pointerSize + Process.pointerSize) is "const size_t size_;"
var base = ptr(dex_file).add(Process.pointerSize).readPointer();
var size = ptr(dex_file).add(Process.pointerSize + Process.pointerSize).readUInt();
if (dex_maps[base] == undefined) {
dex_maps[base] = size;
console.log("hook_dex:", base, size);
}
},
onLeave: function (retval) {}
});
}
}
var is_hook_libart = false;
function hook_dlopen() {
Interceptor.attach(Module.findExportByName(null, "dlopen"), {
onEnter: function (args) {
var pathptr = args[0];
if (pathptr !== undefined && pathptr != null) {
var path = ptr(pathptr).readCString();
//console.log("dlopen:", path);
if (path.indexOf("libart.so") >= 0) {
this.can_hook_libart = true;
console.log("[dlopen:]", path);
}
}
},
onLeave: function (retval) {
if (this.can_hook_libart && !is_hook_libart) {
hook_dex();
is_hook_libart = true;
}
}
})
Interceptor.attach(Module.findExportByName(null, "android_dlopen_ext"), {
onEnter: function (args) {
var pathptr = args[0];
if (pathptr !== undefined && pathptr != null) {
var path = ptr(pathptr).readCString();
//console.log("android_dlopen_ext:", path);
if (path.indexOf("libart.so") >= 0) {
this.can_hook_libart = true;
console.log("[android_dlopen_ext:]", path);
}
}
},
onLeave: function (retval) {
if (this.can_hook_libart && !is_hook_libart) {
hook_dex();
is_hook_libart = true;
}
}
});
}
setImmediate(hook_dex);指针运算符和读写 API
hook so readPointer()
Java.perform(function () {
var libc_addr = Process.findModuleByName("libc.so").base;
console.log("libc address is " + libc_addr);
// 0x10 转为十进制为 16, 读取
console.log(libc_addr.readByteArray(0x10));
// readPointer(), 从此内存位置读取 NativePointer
console.log("pointer size", Process.pointerSize);
console.log("readPointer() is " + libc_addr.readPointer());
console.log("Memory.readPointer()" + Memory.readPointer(libc_addr.add(Process.pointerSize)));
})hook so writePointer()
Java.perform(function () {
var libc_addr = Process.findModuleByName("libc.so").base;
console.log("libc_addr : " + libc_addr);
// 分配四个字节的空间地址
const r = Memory.alloc(4);
// 将 libc_addr 指针写入刚申请的 r 中
r.writePointer(libc_addr);
// 读取 r 指针的数据
var buffer = Memory.readByteArray(r, 4);
console.log(buffer);
})
//libc_addr : 0x7da7fdf000
// 0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
// 00000000 00 f0 fd a7 ....hook so readS32(), readU32()

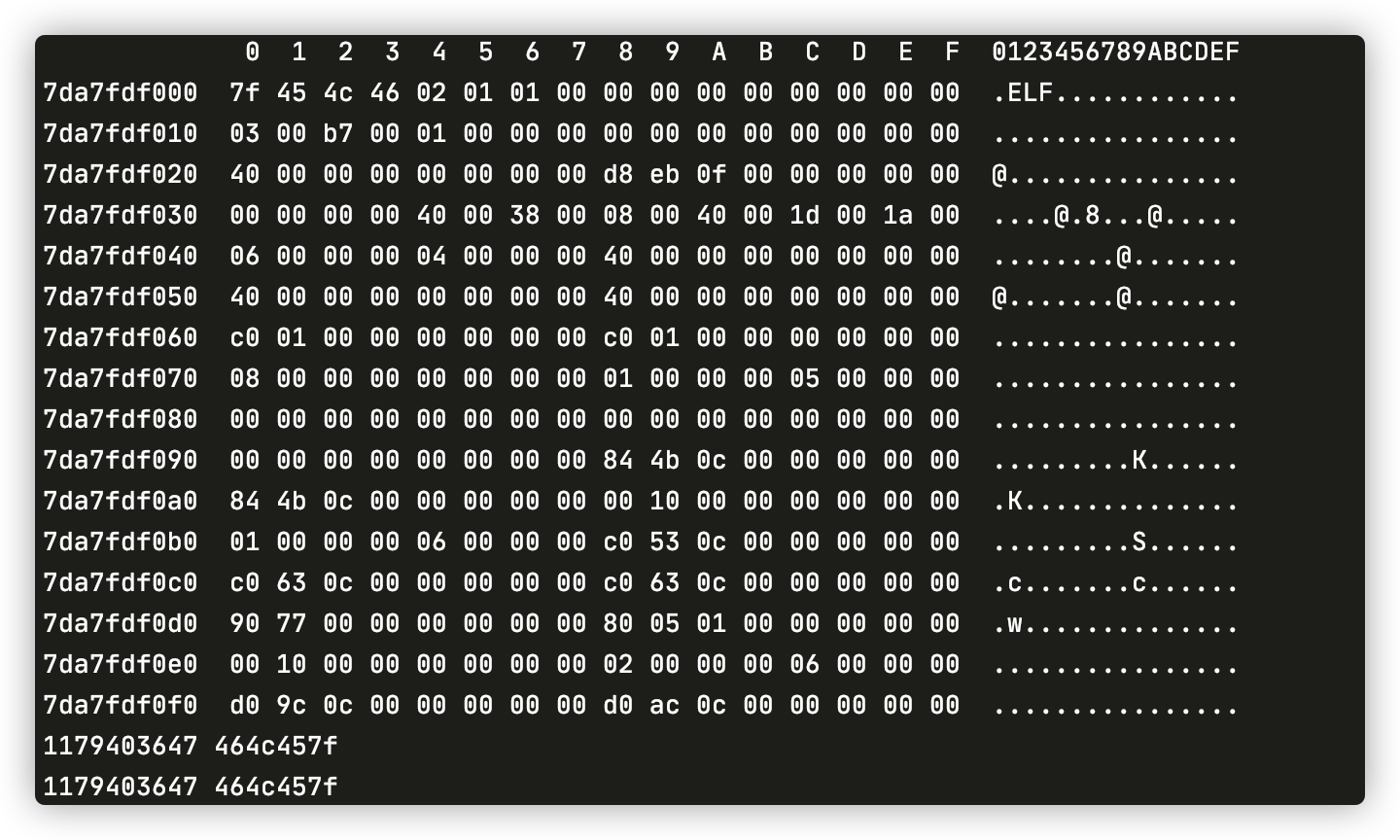

Java.perform(function () {
var libc_addr = Process.findModuleByName("libc.so").base;
console.log(hexdump(libc_addr));
console.log(libc_addr.readS32(), (libc_addr.readS32()).toString(16));
console.log(libc_addr.readU32(), (libc_addr.readU32()).toString(16));
})
hook so writeS32(), writeU32()
Java.perform(function () {
// 开辟四个字节的内存空间
const r = Memory.alloc(4);
r.writeS32(0x12345678);
console.log(r.readByteArray(0x10));
})
<!-- 0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
00000000 78 56 34 12 7d 00 00 00 98 c0 bb a8 7d 00 00 00 xV4.}.......}...
-->hook so readByteArray(), writeByteArray()
Java.perform(function () {
// 定义一个需要写入的字节数组
var arr = [ 0x72, 0x6F, 0x79, 0x73, 0x75, 0x65];
//这里申请以arr大小的内存空间
var r = Memory.alloc(arr.length);
// 将 arr 写入 r 中
r.writeByteArray(arr);
// Memory.writeByteArray(r, arr); 同样可以写入
console.log("memory readbyteArray: ")
console.log(r.readByteArray(arr.length));
console.log(Memory.readByteArray(r, arr.length));
})hook so readCString(), writeUtf8String()
Java.perform(function () {
// 开辟内存空间 存有字符串
var r = Memory.allocUtf8String("你好,世界");
// 读取内存中的字符串
console.log(hexdump(r));
console.log(r.readCString());
// 往内存中写入新的字符串
r.writeUtf8String("Hello,World");
console.log(hexdump(r));
console.log(r.readCString())
})hook 获取 jni array
// 获取 jbytesArray 的指针
var arg1Ptr = Java.vm.getEnv().getByteArrayElements(this.arg1, null)
// 获取到指针后可以直接 hexdump 打印
console.log("arg1Ptr",hexdump(arg1Ptr));
// 如果是字符串可以直接转
console.log("arg1Ptr",arg1Ptr.readCString());ida 动态调试
将 ida 中的 android-server 推入到手机中 adb push /Applications/IDA\ Pro\ 7.0/ida.app/Contents/MacOS/dbgsrv/android_server /data/local/tmp/as android_server 负责调试 32 位的app, android_server64 负责调试 64 位的app, 改名为 as 可以防止部分 android_server 名称检测
给 android_server 增加权限
``
adb shell
su
chmod +x /data/local/tmp/as
进行端口转发 adb forward tcp:11678 tcp:11678
启动 android_server 并指定端口为 11678
adb shell
su
/data/local/tmp/as -p11678
调试之前先注入 frida
新建一个 ida 界面
Debugger - Remote ARMLinux/Android debugger
hostname: localhost; Port: 11678; 勾选 Save network settings as default
frida 打印出目标 function 最终的地址, ida 中 g 到目标 function 地址, 查看是否是 thumb 指令集, 如果是 thumb 则 option + g, 将 T 修改为1, 再按 c;
File - Script file - 读取 ida trace 脚本, 需要更改目标 so 文件和 function 的起始地址和结束地址; 读取之后会出现断点; 快捷键: option F7;
frida 主动调用脚本, 检测断点是否触发
断点检测正常后, ida 中执行 starthook()命令, 进行 hook 操作; 执行suspend_other_thread()挂起其他线程(可选择)
ida 中 Debugger - tracing - tracing options - 设置 Trace file 路径 和 取消 Trace over debugger segments 的勾选
ida 中 Debugger - tracing - 勾选 instruction tracing
frida 主动调用触发断点
ida 点击运行按钮进行执行, 此时 ida 中黄色部分为已经执行完的指令, 点击 Debugger -tracing - tracing window 可以看到当前执行进度;
ida 添加自有 python 路径
------------------
修改路径下的文件 : /Applications/IDA Pro 7.0/ida.app/Contents/MacOS/python/init.py# Prepare sys.path so loading of the shared objects works
lib_dynload = os.path.join(
sys.executable,
IDAPYTHON_DYNLOAD_BASE,
"python", "lib", "python2.7", "lib-dynload")
# added by kevin
sys.path.insert(0, "/Users/zhangyang/anaconda3/envs/py2/lib/python2.7/site-packages")
idapython 脚本调试
--------------
在 pycharm 中开启调试
![6.png][7]
在需要调试的脚本中添加断点import pydevd_pycharm
pydevd_pycharm.settrace('localhost', port=12345, stdoutToServer=True, stderrToServer=True)在 idapython 的__init__.py文件中添加自有的 python 路径;
先在 pycharm 中打开调试监听, 在 ida 中运行要调试的脚本即可;
jni_helper
----------
进入目录 ~/androidFxxk/idaTools/jni_helper
java -jar JadxFindJNI/JadxFindJNI.jar <apk.path> <output.json>
ida 中Script File运行 jni_help脚本, 路径 ~/androidFxxk/idaTools/jni_helper/ida/jni_helper.py
导入刚才生成的 output.json 文件即可自动识别
frida dump 内存中的 so 文件
---------------------
给应用提供 sdcard 权限, 方便将 dump 下来的内容直接写入 sdcard 中;
adb shell dumpsys window | grep mCurrentFocus 查看当前 app 的包名
根据包名查看进程 pid✔ adb shell
sailfish:/ $ su
sailfish:/ # ps -ef | grep com.kevin.sotest
u0_a136 29251 641 0 16:10:14 ? 00:00:00 com.kevin.sotest
root 29845 29827 0 16:17:46 pts/3 00:00:00 grep com.kevin.sotest
通过对应进程id 和 so 名称, 查看其在虚拟地址空间中的映射sailfish:/ # cat /proc/29251/maps | grep libnative-lib.so
7593f4a000-7593f7a000 r-xp 00000000 103:13 1180186 /data/app/com.kevin.sotest-Wmu_QuZYJCLa0CPho2HTHw==/lib/arm64/libnative-lib.so
7593f7b000-7593f7f000 r--p 00030000 103:13 1180186 /data/app/com.kevin.sotest-Wmu_QuZYJCLa0CPho2HTHw==/lib/arm64/libnative-lib.so
7593f7f000-7593f80000 rw-p 00034000 103:13 1180186 /data/app/com.kevin.sotest-Wmu_QuZYJCLa0CPho2HTHw==/lib/arm64/libnative-lib.so
frida 脚本将该内存中的内容全部 dump 下来///<reference path='./index.d.ts'/>
// 应用需要申请 sdcard 权限, dump下来的内容直接写入 sdcard 中
var global_so_name = "libnative-lib.so";
function catMaps() {
Java.perform(function () {
console.log("执行 -> ", "hook starting dump");
var ProcessClass = Java.use("android.os.Process");
var pid = ProcessClass.myPid();
console.log("pid", ProcessClass.myPid());
console.log("cat /proc/" + pid + "/maps | grep " + global_so_name);
})
}
function dump() {
var inputArgs = arguments;
Java.perform(function () {
for (var i in inputArgs) {
var fileHandle = null;
if (i == 0) {
fileHandle = new File("/sdcard/" + global_so_name, "wb");
} else {
fileHandle = new File("/sdcard/" + global_so_name, "ab");
}
if (fileHandle && fileHandle != null) {
var base = "0x" + inputArgs[i].split("-")[0];
var end = "0x" + inputArgs[i].split("-")[1];
var size = parseInt(parseInt(end) - parseInt(base));
console.log("size", size, typeof size);
// Memory.protect(ptr(base), size, 'rwx');
console.log("base", base, typeof base);
var libso_buffer = ptr(base).readByteArray(size);
console.log("buffer", libso_buffer);
fileHandle.write(libso_buffer);
fileHandle.flush();
fileHandle.close();
}
}
})
}
// dump('7593f4a000-7593f7a000', '7593f7b000-7593f7f000', '7593f7f000-7593f80000')
hook system_properties_get
--------------------------///<reference path='./index.d.ts'/>
// hook libc.so
var targetAddr = null;
// console.log(JSON.stringify(Process.enumerateModules()));
// Process.enumerateModules() 枚举加载的so文件
var symbols = Process.findModuleByName("libc.so").enumerateSymbols();
for (var i = 0; i < symbols.length; i++){
if (symbols[i].name === "__system_property_get"){
targetAddr = symbols[i].address;
}
}
//
Interceptor.attach(targetAddr, {
onEnter: function (args) {
this._name = args[0].readCString();
this._value = args[1];
},
onLeave: function (retval) {
console.log(JSON.stringify({
result_length: retval,
name: this._name,
val: this._value.readCString()
}))
}
});Process 对象API
-------------
Process.id
返回附加目标进程的 PIDfunction Process_pid() {
console.log(Process.id);
}
// 10190调用的结果和在 android 中通过 ps -ef | grep hellojni_sign2的pid 相同u0_a139 10190 639 0 15:03:40 ? 00:00:10 com.example.hellojni_sign2
Process.isDebuggerAttached()
----------------------------
检测当前是否对目标程序已经附加
Process.enumerateModules()
--------------------------
枚举当前加载的模块，返回模块对象的数组。 Process.enumerateModules()会枚举当前所有已加载的so模块，并且返回了数组Module对象; 可以通过 JSON.stringify()打印module 对象;function ProcessTest() {
var modules = Process.enumerateModules();
for (var i = 0; i < modules.length; i++) {
console.log(JSON.stringify(modules[i]));
var module = modules[i];
console.log("module.name", module.name);
console.log("module.base", module.base);
console.log("module.size", module.size);
console.log("module.path", module.path);
}
}其中 module 对象中含有的属性为:
name: so 的名称
base: so 加载的基础地址
size: so 文件的大小
path: so 文件的路径
Process.enumerateThreads()
--------------------------
Process.enumerateThreads()：枚举当前所有的线程，返回包含以下属性的对象数组：
![7.png][8]
Module 对象 API 和属性
-----------------
Module 对象的属性
------------
索引 属性 含义 1 name 模块名称 2 base 模块地址，其变量类型为NativePointer 3 size 大小 4 path 完整文件系统路径
Module.load()
-------------
主要用于加载指定 so 文件, 返回一个 Module 对象;function frida_Module() {
Java.perform(function () {
//参数为so的名称 返回一个Module对象
const hooks = Module.load('libhello.so');
//输出
console.log("模块名称:",hooks.name);
console.log("模块地址:",hooks.base);
console.log("大小:",hooks.size);
console.log("文件系统路径",hooks.path);
});
}
setImmediate(frida_Module,0);
输出如下：
模块名称: libhello.so
模块地址: 0xdf2d3000
大小: 24576
文件系统路径 /data/app/com.roysue.roysueapplication-7adQZoYIyp5t3G5Ef5wevQ==/lib/arm/libhello.so
Module.enumerateImports()
-------------------------
枚举模块中的所有 import 函数function frida_Module() {
Java.perform(function () {
const hooks = Module.load('libhello.so');
var Imports = hooks.enumerateImports();
for(var i = 0; i < Imports.length; i++) {
//函数类型
console.log("type:",Imports[i].type);
//函数名称
console.log("name:",Imports[i].name);
//属于的模块
console.log("module:",Imports[i].module);
//函数地址
console.log("address:",Imports[i].address);
}
});
}
setImmediate(frida_Module,0);
输出如下：
[Google Pixel::com.roysue.roysueapplication]-> type: function
name: __cxa_atexit
module: /system/lib/libc.so
address: 0xf58f4521
type: function
name: __cxa_finalize
module: /system/lib/libc.so
address: 0xf58f462d
type: function
name: __stack_chk_fail
module: /system/lib/libc.so
address: 0xf58e2681
...
Module.enumerateExports()
-------------------------
获取指定 so 的所有导出函数function frida_Module() {
Java.perform(function () {
const hooks = Module.load('libhello.so');
var Exports = hooks.enumerateExports();
for(var i = 0; i < Exports.length; i++) {
//函数类型
console.log("type:",Exports[i].type);
//函数名称
console.log("name:",Exports[i].name);
//函数地址
console.log("address:",Exports[i].address);
}
});
}
setImmediate(frida_Module,0);
输出如下：
[Google Pixel::com.roysue.roysueapplication]-> type: function
name: Java_com_roysue_roysueapplication_hellojni_getSum
address: 0xdf2d411b
type: function
name: unw_save_vfp_as_X
address: 0xdf2d4c43
type: function
address: 0xdf2d4209
type: function
...
Module.enumerateSymbols()
-------------------------
获取指定 so 的所有符号表function frida_Module() {
Java.perform(function () {
const hooks = Module.load('libc.so');
var Symbol = hooks.enumerateSymbols();
for(var i = 0; i < Symbol.length; i++) {
console.log("isGlobal:",Symbol[i].isGlobal);
console.log("type:",Symbol[i].type);
console.log("section:",JSON.stringify(Symbol[i].section));
console.log("name:",Symbol[i].name);
console.log("address:",Symbol[i].address);
}
});
}
setImmediate(frida_Module,0);
输出如下：
isGlobal: true
type: function
section: {"id":"13.text","protection":"r-x"}
name: _Unwind_GetRegionStart
address: 0xf591c798
isGlobal: true
type: function
section: {"id":"13.text","protection":"r-x"}
name: _Unwind_GetTextRelBase
address: 0xf591c7cc
...
Module.findExportByName(exportName) Module.getExportByName(exportName)
----------------------------------------------------------------------function frida_Module() {
Java.perform(function () {
Module.getExportByName('libhello.so', 'c_getStr')
console.log("Java_com_roysue_roysueapplication_hellojni_getStr address:",Module.findExportByName('libhello.so', 'Java_com_roysue_roysueapplication_hellojni_getStr'));
console.log("Java_com_roysue_roysueapplication_hellojni_getStr address:",Module.getExportByName('libhello.so', 'Java_com_roysue_roysueapplication_hellojni_getStr'));
});
}
setImmediate(frida_Module,0);
输出如下：
Java_com_roysue_roysueapplication_hellojni_getStr address: 0xdf2d413d
Java_com_roysue_roysueapplication_hellojni_getStr address: 0xdf2d413d
Module.findBaseAddress(name)、Module.getBaseAddress(name)
--------------------------------------------------------
返回 name 模块的绝对基地址function frida_Module() {
Java.perform(function () {
var name = "libhello.so";
console.log("so address:",Module.findBaseAddress(name));
console.log("so address:",Module.getBaseAddress(name));
});
}
setImmediate(frida_Module,0);
输出如下：
so address: 0xdf2d3000
so address: 0xdf2d3000
Memory 对象
---------
Memory 的一些 API 通常是对内存处理, 譬如 Memroy.copy()用来复制内存; 又或者Memory.writeByteArray写入字节到指定内存中;
Memory.scan搜索内存数据
-----------------
其主要功能是搜索内存中以address地址开始，搜索长度为size，需要搜是条件是pattern，callbacks搜索之后的回调函数；此函数相当于搜索内存的功能。
如果我想搜索在内存中112A地址的起始数据要怎么做，代码示例如下。function frida_Memory() {
Java.perform(function () {
//先获取so的module对象
var module = Process.findModuleByName("libhello.so");
//??是通配符
var pattern = "03 49 ?? 50 20 44";
//基址
console.log("base:"+module.base)
//从so的基址开始搜索，搜索大小为so文件的大小，搜指定条件03 49 ?? 50 20 44的数据
var res = Memory.scan(module.base, module.size, pattern, {
onMatch: function(address, size){
//搜索成功
console.log('搜索到 ' +pattern +" 地址是:"+ address.toString());
},
onError: function(reason){
//搜索失败
console.log('搜索失败');
},
onComplete: function()
{
//搜索完毕
console.log("搜索完毕")
}
});
});
}
setImmediate(frida_Memory,0);先来看看回调函数的含义，onMatch：function(address，size)：使用包含作为NativePointer的实例地址的address和指定大小为数字的size调用，此函数可能会返回字符串STOP以提前取消内存扫描。onError：Function(Reason)：当扫描时出现内存访问错误时使用原因调用。onComplete：function()：当内存范围已完全扫描时调用。
我们来来说上面这段代码做了什么事情：搜索libhello.so文件在内存中的数据，搜索以pattern条件的在内存中能匹配的数据。搜索到之后根据回调函数返回数据。
![8.png][9]
搜索内存数据Memory.scanSync
---------------------
功能与Memory.scan一样，只不过它是返回多个匹配到条件的数据。代码示例如下。function frida_Memory() {
Java.perform(function () {
var module = Process.findModuleByName("[libhello.so](http://libhello.so)");
var pattern = "03 49 ?? 50 20 44";
var scanSync = Memory.scanSync(module.base, module.size, pattern);
console.log("scanSync:"+JSON.stringify(scanSync));
});
}
setImmediate(frida_Memory,0);
// 输出如下，可以看到地址搜索出来是一样的
scanSync:[{"address":"0xdf2d412a","size":6}]
Memory.alloc()
--------------
在目标进程中的堆上申请size大小的内存，并且会按照Process.pageSize对齐，返回一个NativePointer，并且申请的内存如果在JavaScript里面没有对这个内存的使用的时候会自动释放的。也就是说，如果你不想要这个内存被释放，你需要自己保存一份对这个内存块的引用。function frida_Memory() {
Java.perform(function () {
const r = Memory.alloc(10);
console.log(hexdump(r, {
offset: 0,
length: 10,
header: true,
ansi: false
}));
});
}
setImmediate(frida_Memory,0);
Memory.allocUtf8String(),Memory.allocUtf16String(),Memory.allocAnsiString()
------------------------------------------------------------------------
Memory.allocUtf8String(str) 分配utf字符串
Memory.allocUtf16String 分配utf16字符串
Memory.allocAnsiString 分配ansi字符串
内存复制Memory.copy
---------------
如同c api memcp一样调用，使用案例如下。
从module.base中复制10个字节的内存到新年申请的r内function frida_Memory() {
Java.perform(function () {
//获取so模块的Module对象
var module = Process.findModuleByName("libhello.so");
//条件
var pattern = "03 49 ?? 50 20 44";
//搜字符串 只是为了将so的内存数据复制出来 方便演示~
var scanSync = Memory.scanSync(module.base, module.size, pattern);
//申请一个内存空间大小为10个字节
const r = Memory.alloc(10);
//复制以module.base地址开始的10个字节 那肯定会是7F 45 4C 46...因为一个ELF文件的Magic属性如此。
Memory.copy(r,module.base,10);
console.log(hexdump(r, {
offset: 0,
length: 10,
header: true,
ansi: false
}));
});
}
setImmediate(frida_Memory,0);
写入内存Memory.writeByteArray
-------------------------
将字节数组写入一个指定内存，代码示例如下:function frida_Memory() {
Java.perform(function () {
//定义需要写入的字节数组 这个字节数组是字符串"roysue"的十六进制
var arr = [ 0x72, 0x6F, 0x79, 0x73, 0x75, 0x65];
//申请一个新的内存空间 返回指针 大小是arr.length
const r = Memory.alloc(arr.length);
//将arr数组写入R地址中
Memory.writeByteArray(r,arr);
//输出
console.log(hexdump(r, {
offset: 0,
length: arr.length,
header: true,
ansi: false
}));
});
}
setImmediate(frida_Memory,0);
输出如下。
0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
00000000 72 6f 79 73 75 65 roysue
读取内存Memory.readByteArray
------------------------
将一个指定地址的数据按照 c 中bytearray进行读取function frida_Memory() {
Java.perform(function () {
//定义需要写入的字节数组 这个字节数组是字符串"roysue"的十六进制
var arr = [ 0x72, 0x6F, 0x79, 0x73, 0x75, 0x65];
//申请一个新的内存空间 返回指针 大小是arr.length
const r = Memory.alloc(arr.length);
//将arr数组写入R地址中
Memory.writeByteArray(r,arr);
//读取r指针，长度是arr.length 也就是会打印上面一样的值
var buffer = Memory.readByteArray(r, arr.length);
//输出
console.log("Memory.readByteArray:");
console.log(hexdump(buffer, {
offset: 0,
length: arr.length,
header: true,
ansi: false
}));
});
});
}
setImmediate(frida_Memory,0);
//输出如下。
[Google Pixel::com.roysue.roysueapplication]-> Memory.readByteArray:
0 1 2 3 4 5 6 7 8 9 A B C D E F 0123456789ABCDEF
00000000 72 6f 79 73 75 65 roysue
hook fgets 让 TracerPid 为 0
--------------------------var anti_fgets = function () {
var fgetsPtr = Module.findExportByName("libc.so", "fgets");
var fgets = new NativeFunction(fgetsPtr, 'pointer', ['pointer', 'int', 'pointer']);
Interceptor.replace(fgetsPtr, new NativeCallback(function (buffer, size, fp) {
var retval = fgets(buffer, size, fp);
var bufstr = Memory.readUtf8String(buffer);
if (bufstr.indexOf("TracerPid:") > -1) {
console.log(bufstr); //此代码由我添加，打印TracerPid的值
Memory.writeUtf8String(buffer, "TracerPid:\t0");
}
return retval;
}, 'pointer', ['pointer', 'int', 'pointer']));
};frida 批量 trace
--------------
使用 native_trace 对关键函数进行批量 trace, 获取 trace.log
使用 python 脚本提取其中的地址, 编辑了模板快速使用 traceimport re
native_trace = """
16071 ms | sub_1494c4() ;debug 最终结果出现位置 (md5resultPtr, len, resultPtr)
16071 ms | sub_2546c()
16071 ms | sub_28d18()
16071 ms | | sub_bc028()
16071 ms | | | sub_cf970()
16071 ms | | | | sub_d4680()
"""
addr_list = re.findall(r"sub_(.*)()", native_trace)
addr_list = list(map(lambda x:"0x" + x, addr_list))
print(addr_list)
使用 trace 出来的地址使用 frida 批量进行 hook; 编辑了模板快速使用 print_arg和 trace
// native
var base = Process.findModuleByName("libhello-jni.so").base;
function print_arg(addr) {
var range = Process.findRangeByAddress(addr);
if (range != null) {
return hexdump(addr) + '\r\n';
}else{
return ptr(addr) + "\r\n";
}
}
function native_trace(addr) {
var offset = addr;
addr = base.add(addr);
Interceptor.attach(addr, {
onEnter: function (args) {
// frida 设计的时候就无法获知 args 的长度
console.log("======================onenter sub_" + offset + "==========================");
for (var i = 0; i < 5; i++) {
eval("this.arg" + i + "=args[" + i + "]");
console.log("this.arg" + i, print_arg(eval("this.arg" + i)));
}
},
onLeave: function (returnValue) {
console.log("======================onleave sub_" + offset + "==========================");
for (var i = 0; i < 5; i++) {
console.log("this.arg" + i, print_arg(eval("this.arg" + i)))
}
console.log("returnVlaue", print_arg(returnValue));
}
})
}
function main() {
var trace_list = ['0x1494c4'];
for (var i = 0; i < trace_list.length; i++) {
native_trace(trace_list[i]);
}
}
setImmediate(main);
本条博客转载自：凡墙总是门
